The UMX is an advanced system developed from the ground up for use with natural gas, LPG, or a combination of both. Within just 3 to 5 minutes of start-up, it reaches full operating capability and delivers smooth, continuous modulation from 20% up to 100%. Featuring ultra-low NOx emissions, excellent energy efficiency, and intuitive controls, the UMX redefines performance standards in its category.
- Smooth output modulation from 20% to 100%
- Suitable for natural gas, LPG, or dual-fuel applications
- NOx emissions well below regulatory limits

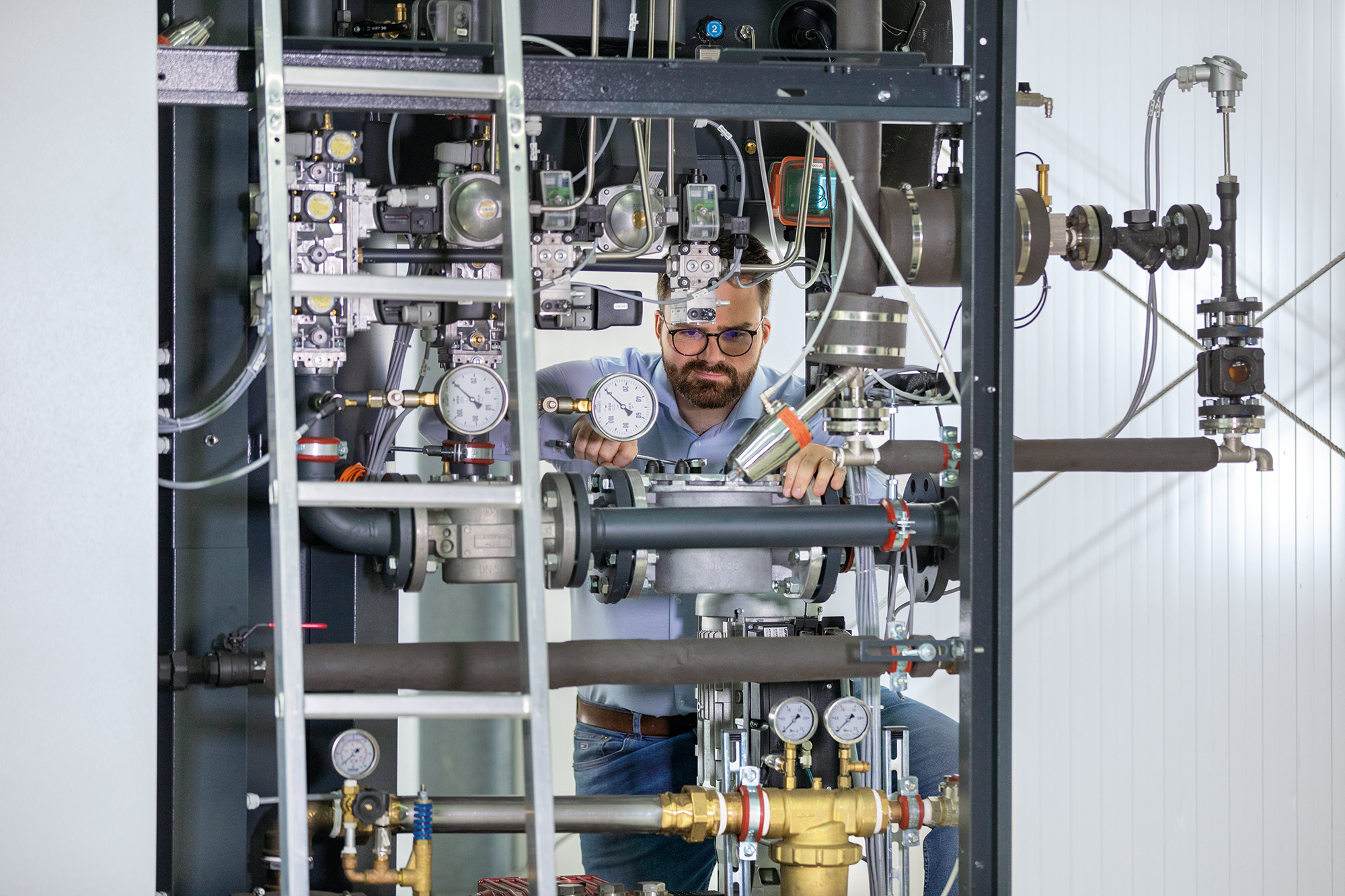

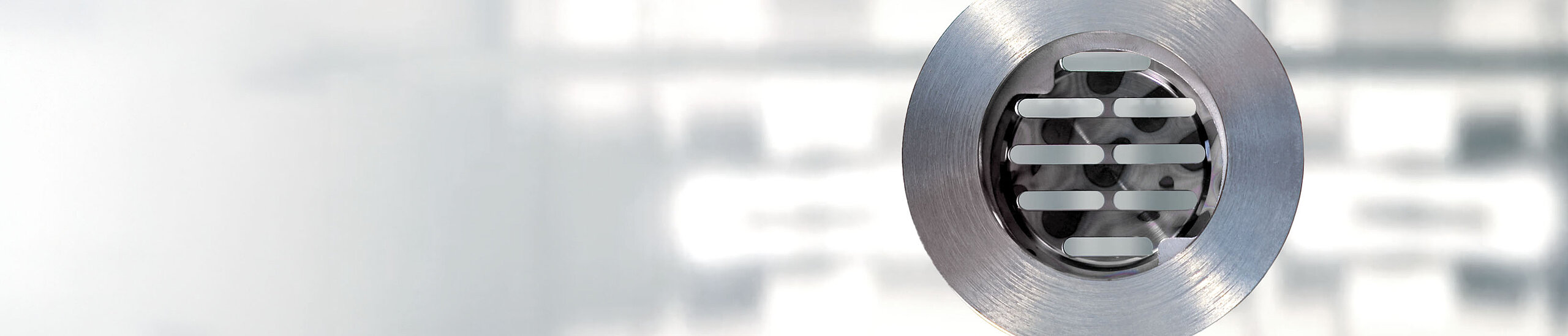

- Built-in components: water pump, gas filter, hot water filter, slide valve, and steam dryer
- Smart One View Control for real-time remote monitoring
- Service-friendly design with integrated crane, maintenance ladder, and optimized access points

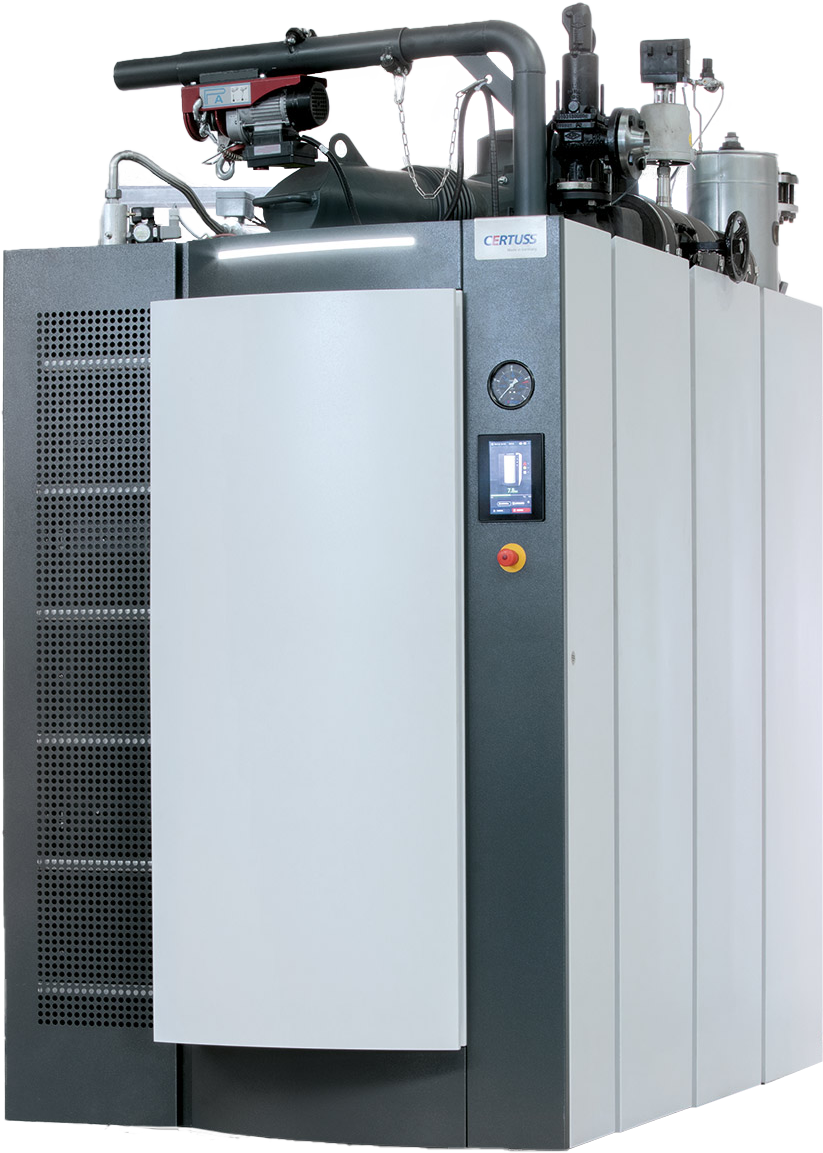

UMX — Steam generator for gas
| 1500 | 1800 | 2000 | |
|---|---|---|---|
| Steam output | 1500 kg/h | 1800 kg/h | 2000 kg/h |
| Heat output | 984 kW | 1181 kW | 1312 kW |
| Max. rated thermal input | 1091 kW | 1309 kW | 1454 kW |
| Height / Width / Depth | 2632 / 1435 / 2442 mm | 2632 / 1435 / 2442 mm | 2632 / 1435 / 2442 mm |
| Min. / Max. operating pressure | 6/8 – 29 bar | 6/8 – 29 bar | 6/8 – 29 bar |
| Max. perm. overpressure | 10 – 13 bar | 16 – 20 bar | 25 – 32 bar |
